Quality & Manufacturing

We focus on delivering dependable LED display solutions through professional manufacturing management and comprehensive quality control.
From LED components and module production to final testing and delivery, every stage is carefully controlled to ensure stable performance for commercial and professional applications.

Our Quality Philosophy

Consistency, Reliability, and Long-Term Performance

A professional LED display may operate for thousands of hours in demanding environments.
To support long-term reliability, we focus on:

✓ Stable component selection
✓ Controlled manufacturing processes
✓ Comprehensive testing procedures
✓ Consistent image performance
✓ Continuous quality improvement

Our goal is simple:
Deliver LED displays that perform reliably throughout their service life.

Quality Starts with Reliable Components

Selecting the Right Components for Long-Term Performance

The performance and reliability of an LED display depend heavily on the quality of its internal components.
We carefully evaluate key components to ensure stable operation and consistent display performance.

LED lights

High-quality LED chips provide:

  • Stable brightness output
  • Accurate color reproduction
  • Long operating lifespan
  • Better consistency between pixels

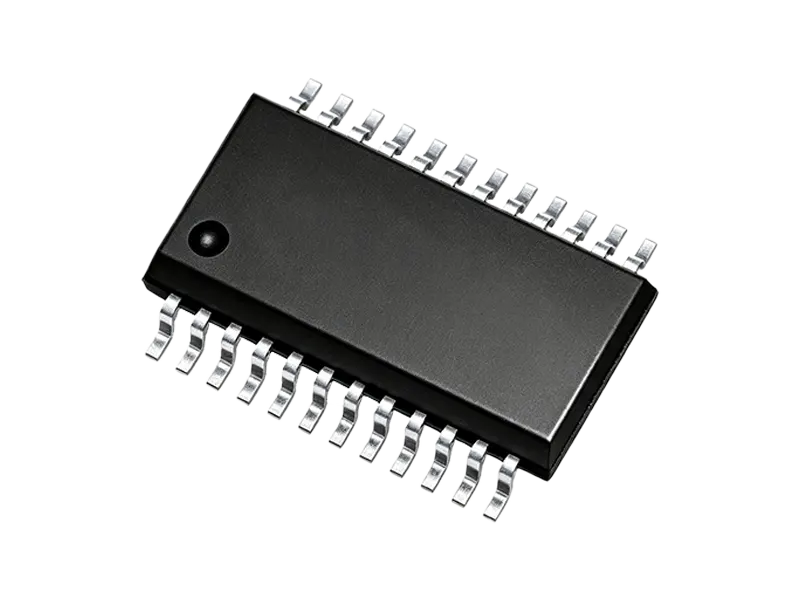

Driver ICs

Reliable driver ICs ensure:

  • High refresh rates
  • Smooth grayscale performance
  • Better image stability
  • Reduced display artifacts

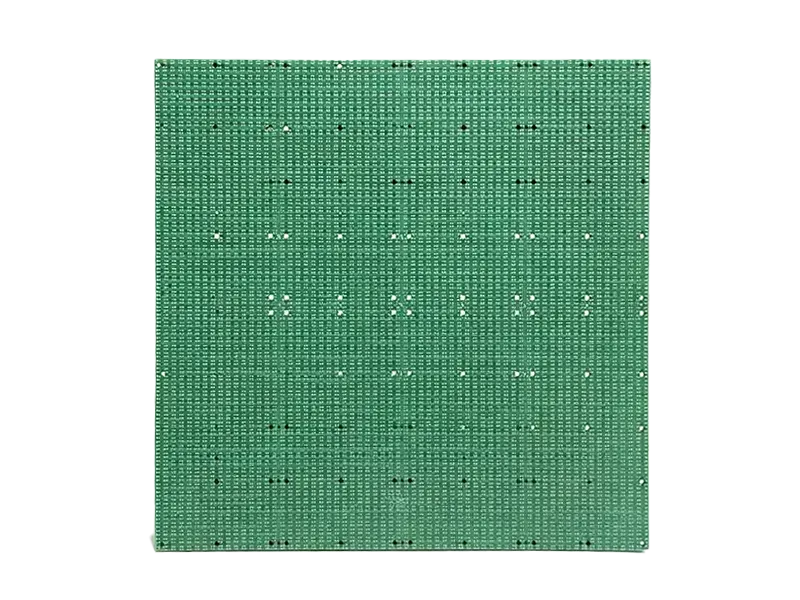

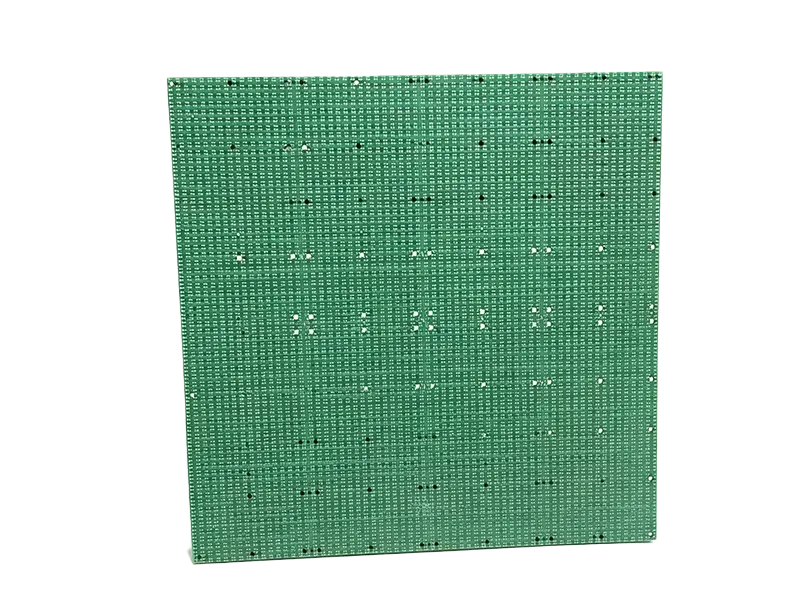

PCB Design

Professional PCB design helps improve:

  • Signal transmission stability
  • Heat management
  • Electrical reliability

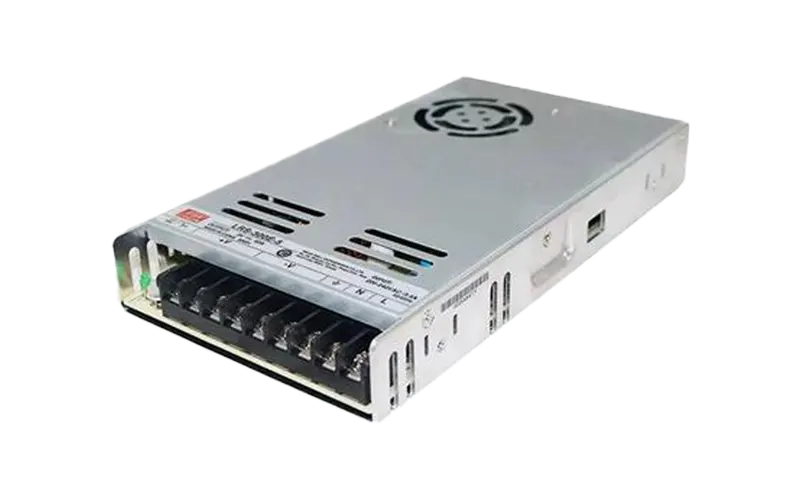

Power Supply Systems

Quality power systems provide:

  • Stable voltage output
  • Energy efficiency
  • Safe long-term operation

SMD LED Module Manufacturing

Precision Production for Consistent Display Performance

For SMD LED displays, module quality directly affects image performance, reliability, and lifespan.
Professional manufacturing processes help ensure consistent quality across every module.

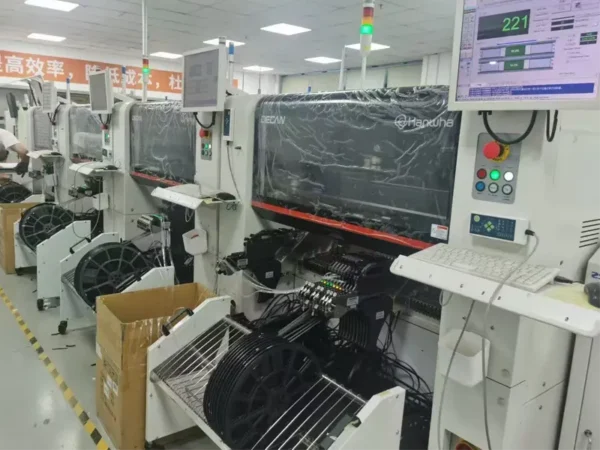

1. SMT Placement

High-precision SMT equipment is used to accurately place LED lamps, driver ICs, and electronic components onto PCB boards.
Professional SMT equipment ensures:

✓ Consistent pixel spacing
✓ Stable electrical connections
✓ Reliable display performance

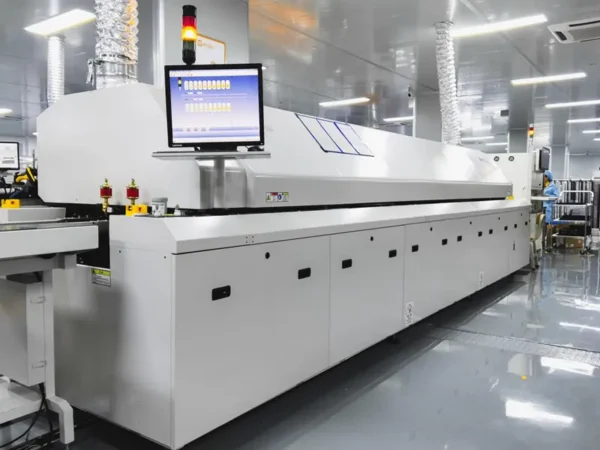

2. Reflow Soldering

After SMT placement, PCB boards pass through the reflow soldering process.
This process creates reliable solder joints between LED components and the PCB.
Quality inspection includes:

  • Soldering quality
  • Component placement accuracy
  • Missing or damaged components
  • Electrical connection stability

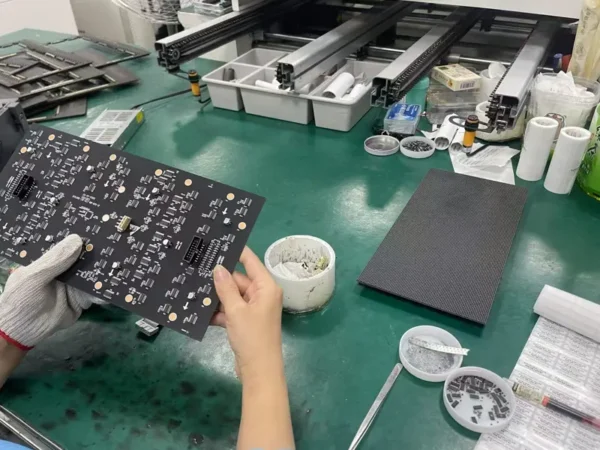

3. Repair & Verification

Modules identified during inspection are reviewed and corrected before continuing to the next stage.
Additional verification helps ensure production consistency.

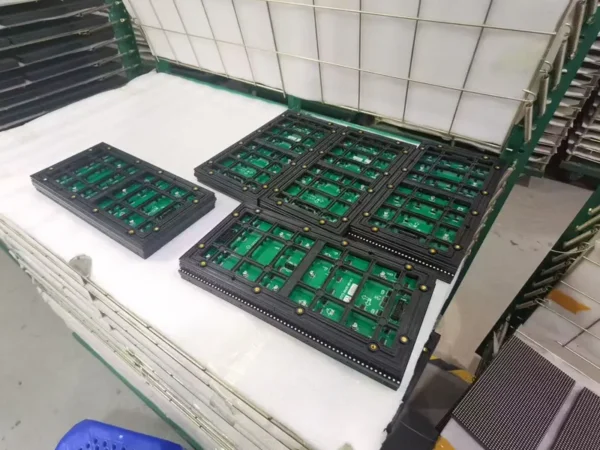

4. Module Assembly

After electronic assembly, the PCB is integrated into a complete LED module.
The assembly process includes:

  • PCB mounting
  • Module frame installation
  • Mask installation
  • Injection glue surrounding LED (Outdoor Module)
  • Module appearance inspection

Each module is prepared for final testing before integration into LED cabinets.

5. Aging Testing & Calibration

Before delivery, LED modules undergo performance testing.
Testing includes:

1. Aging Testing

Helps identify:

✓LED failures
✓IC problems
✓Signal instability
✓Power issues

2. Brightness Calibration

Ensures:

✓Uniform brightness
✓Consistent visual performance

3. Color Calibration

Checks:

✓Color consistency
✓White balance
✓Grayscale performance

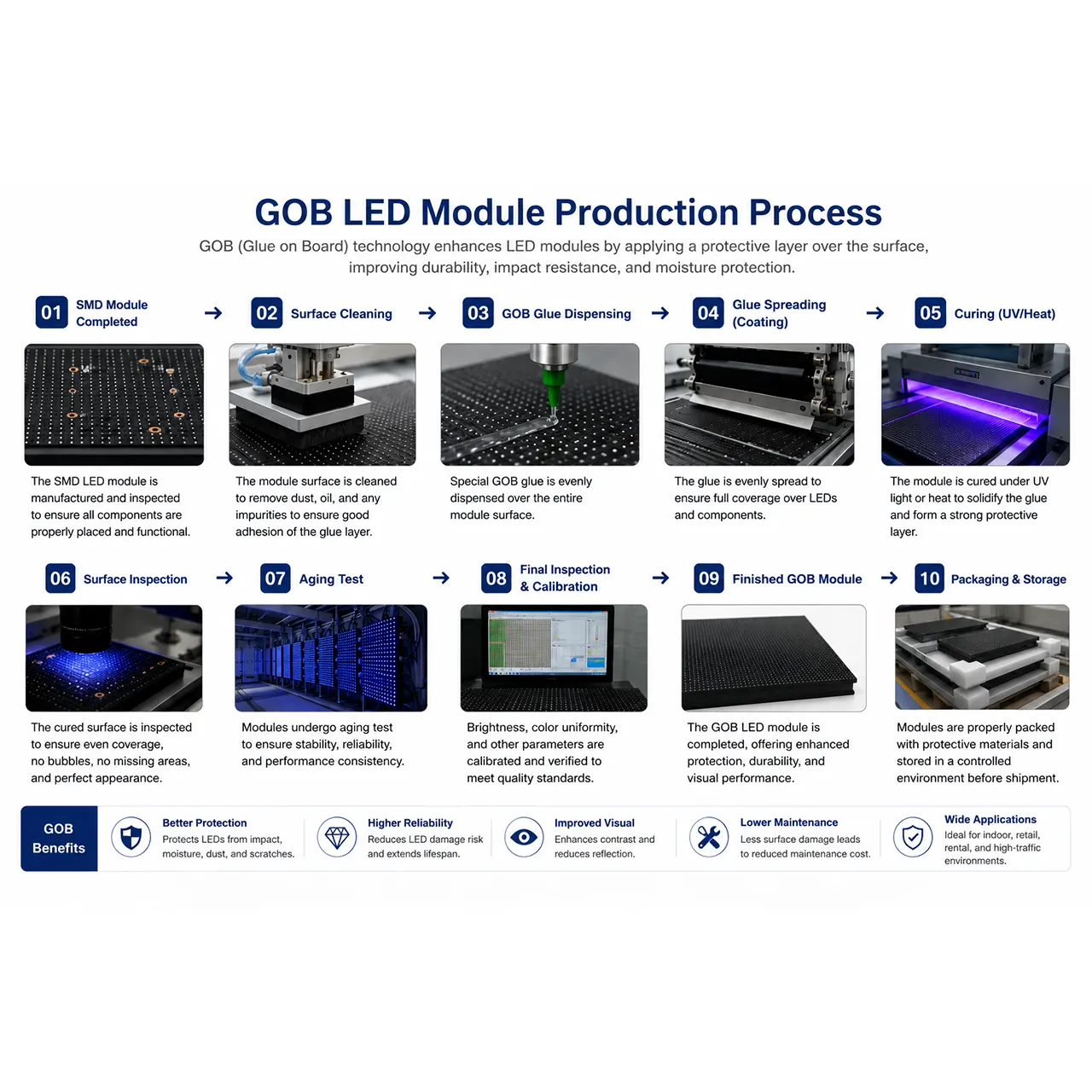

Optional GOB Protection Process

For applications requiring enhanced protection, GOB technology can be applied.
The GOB process adds a protective layer over LED components, providing:

  • Better impact resistance
  • Improved dust protection
  • Enhanced durability
  • Reduced risk of LED damage

This technology is especially suitable for:

  • Fine-pitch LED displays
  • Interactive displays
  • High-traffic environments

LED Display Assembly & Integration

From Modules to Complete Display Systems

A complete LED display requires precise integration of modules, cabinets, control systems, and power components.
Our quality management covers:

Cabinet Assembly

Checking:

  • Structural accuracy
  • Flatness
  • Mechanical strength
  • Installation compatibility

Power System Installation

Providing:

  • Stable power distribution
  • Safe operation
  • Long-term reliability

Control System Integration

Including:

  • Receiving cards
  • Signal processing
  • Communication systems

Signal & Power Verification

Ensuring all components operate correctly before full-screen testing.

Full Screen Testing

Verifying System-Level Performance

Before shipment, completed LED displays undergo system-level testing.
Testing may include:

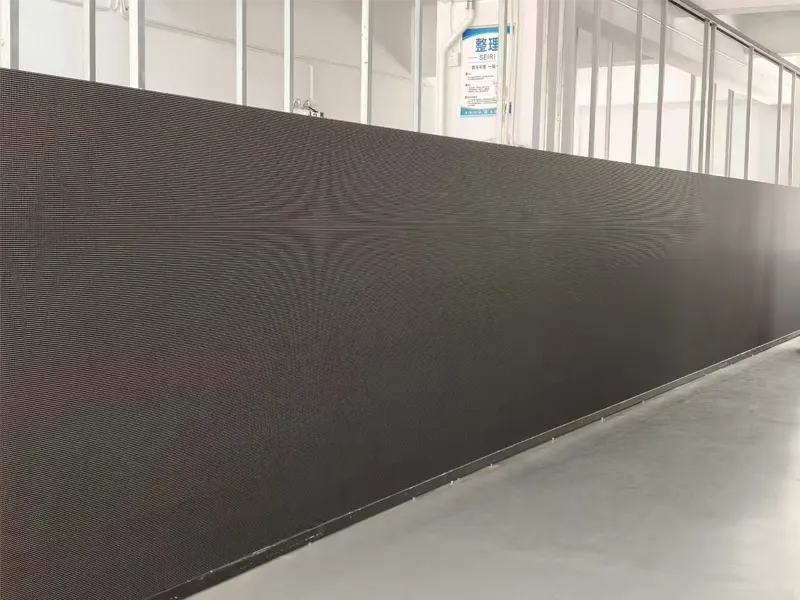

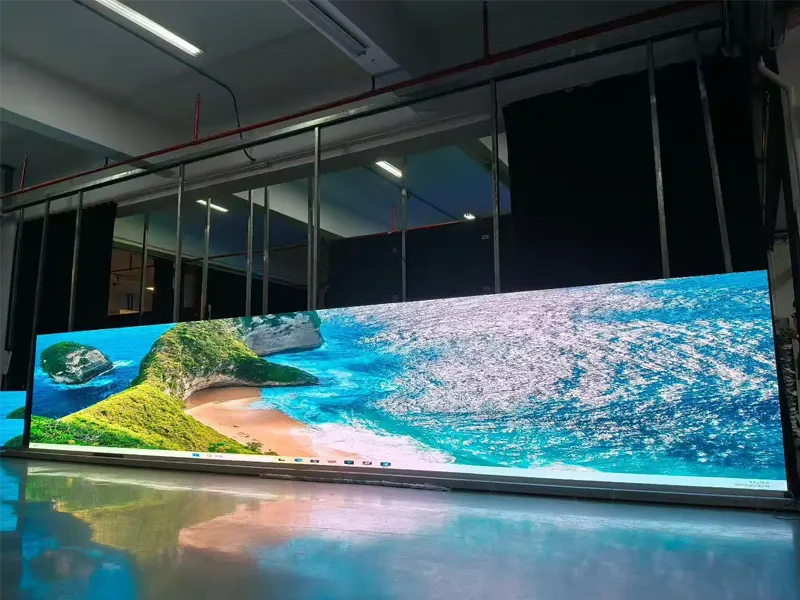

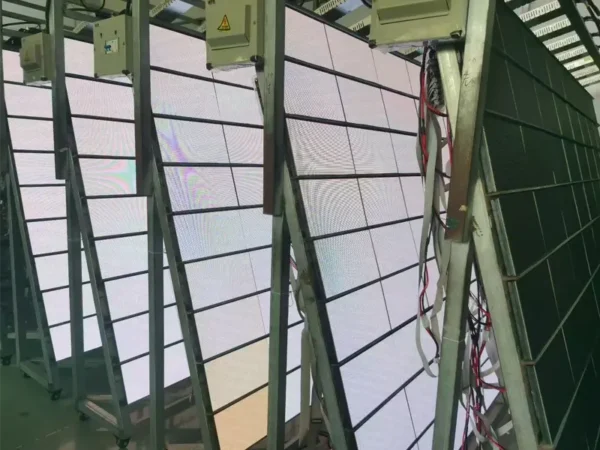

Full Screen Aging

Continuous operation 48-72 hours testing to verify system stability.

Brightness Verification

Checking consistency across the display surface.

Color Uniformity Testing

Ensuring accurate image reproduction.

Signal Stability Testing

Verifying communication and display performance.

Visual Inspection

Checking overall display quality and appearance.

Repair and re-inspection

Repair and re-inspect any parts that malfunction during testing to ensure the product is flawless.

Professional Packaging & Delivery

Protecting Your LED Investment During Transportation

Large LED projects require careful packaging and logistics management.
We focus on:

  • Secure packaging solutions
  • Cabinet protection
  • Complete product documentation
  • Shipment coordination

Our goal is to ensure every display arrives safely and ready for installation.

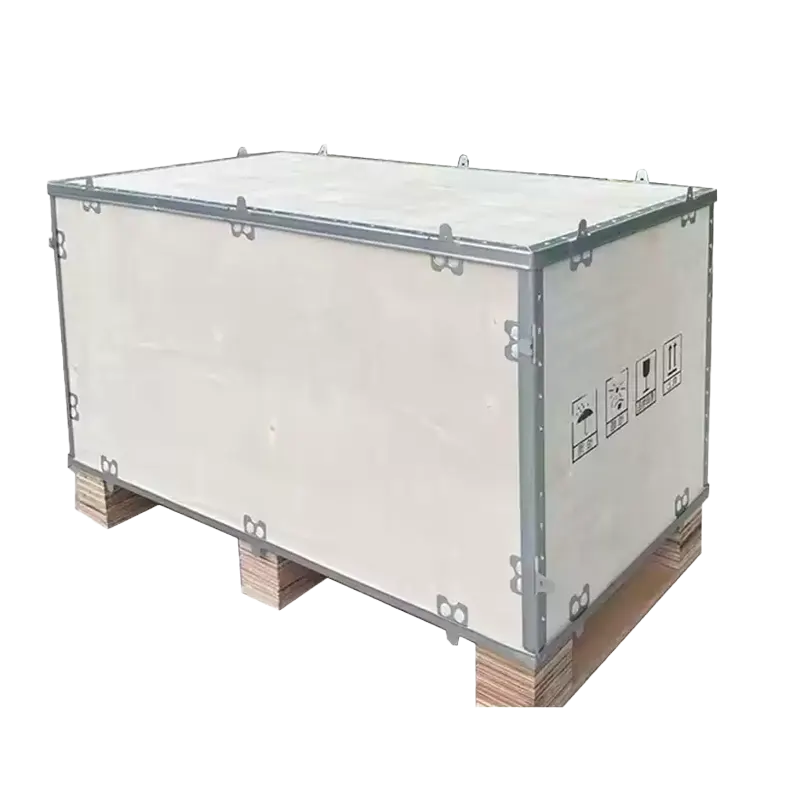

Wooden Case Packing

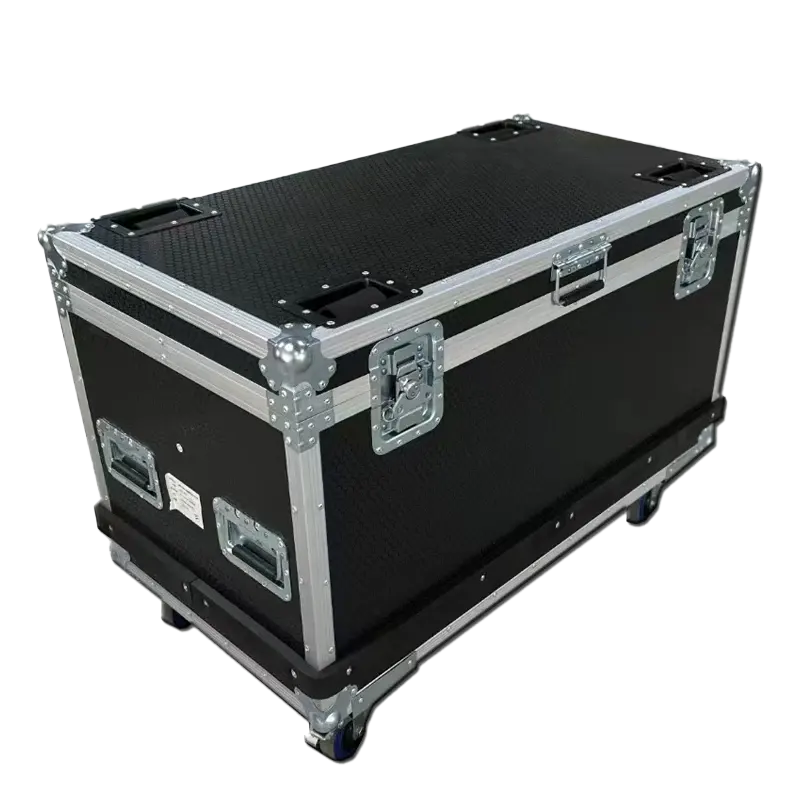

Flight Case Packing

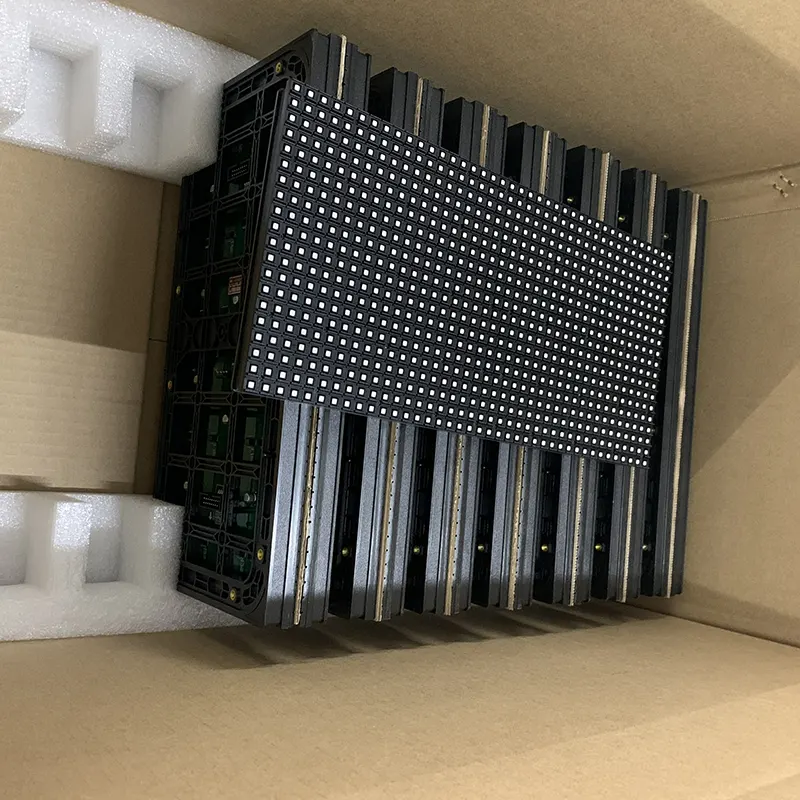

Carton Packing (LED Module)

Quality You Can Trust. Performance You Can Rely On.

Every LED display represents a long-term investment.
Through professional manufacturing processes, strict quality control, and continuous technology improvement, We help customers build reliable LED display solutions for commercial and professional applications worldwide.
Contact us today to discuss your LED display project and discover a solution designed for your application.
